Hydro-STIV Cloud

Flow velocity and discharge measurement software using video footage

「Hydro-STIV Cloud」 is a flow velocity and discharge measurement system that uses video images and water level information. In addition to basic functions for measuring flow velocity and discharge, it is equipped with the latest measurement technology, such as a function to correct the wind effects and a function to calculate velocity distribution of cross section.

Video Showing an Image of Operation

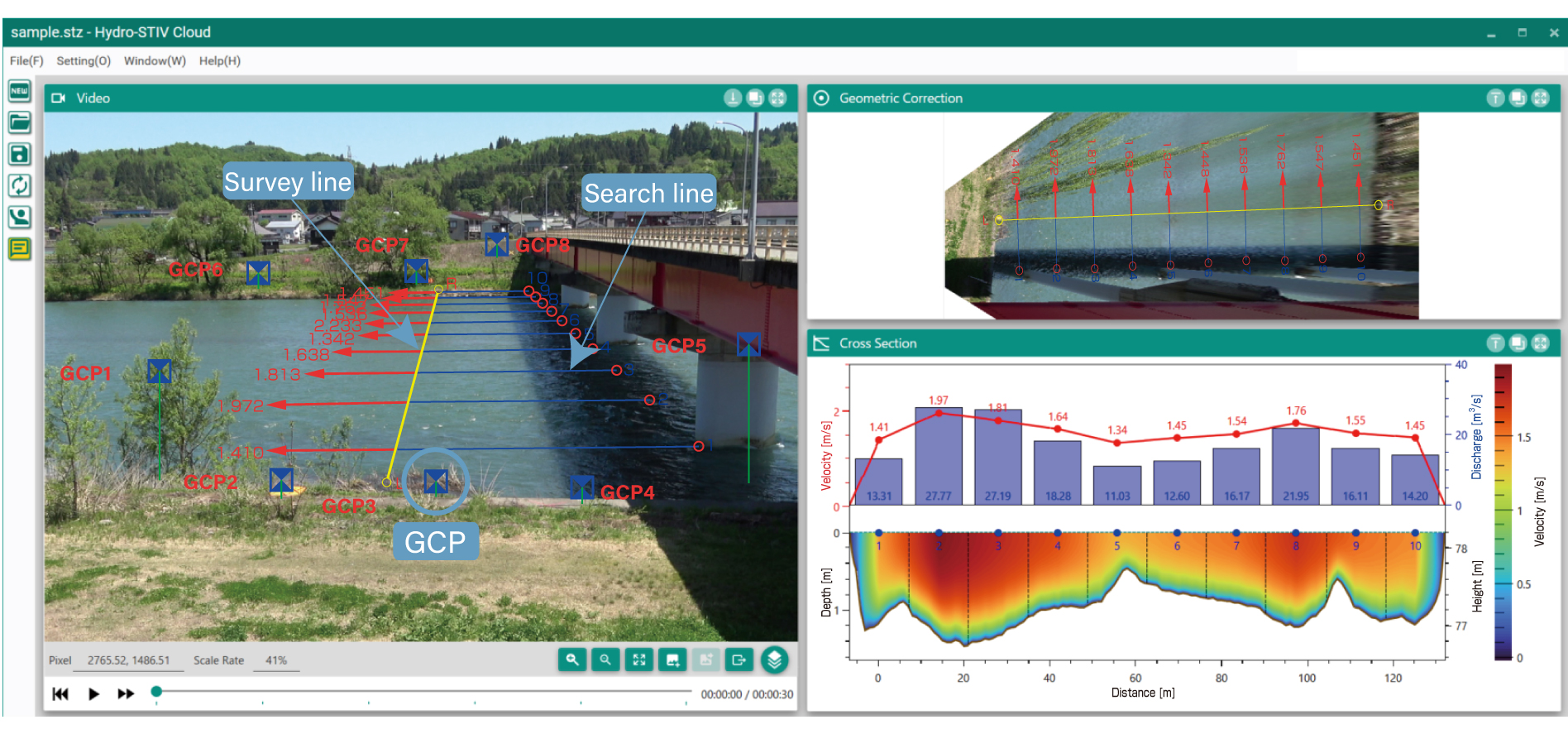

Intuitive and easy to measure.
The measurement results can be output to an HTML report.

AI Enables High-speed and High Accuracy Measurement

AI(Deep learning) enables more stable measurement than conventional methods, Highly accurate measurement can be performed with complete automatic analysis even when obstacles are in the image, when there is muddy water and heavy rain with high water, when there is a reflecting light at night infrared camera is used.

Comparison of flow velocity and discharge measurements by ADCP(Acoustic Doppler Current Profiler)and Hydro-STIV has confirmed that the measured discharge of the two differ within about 5%

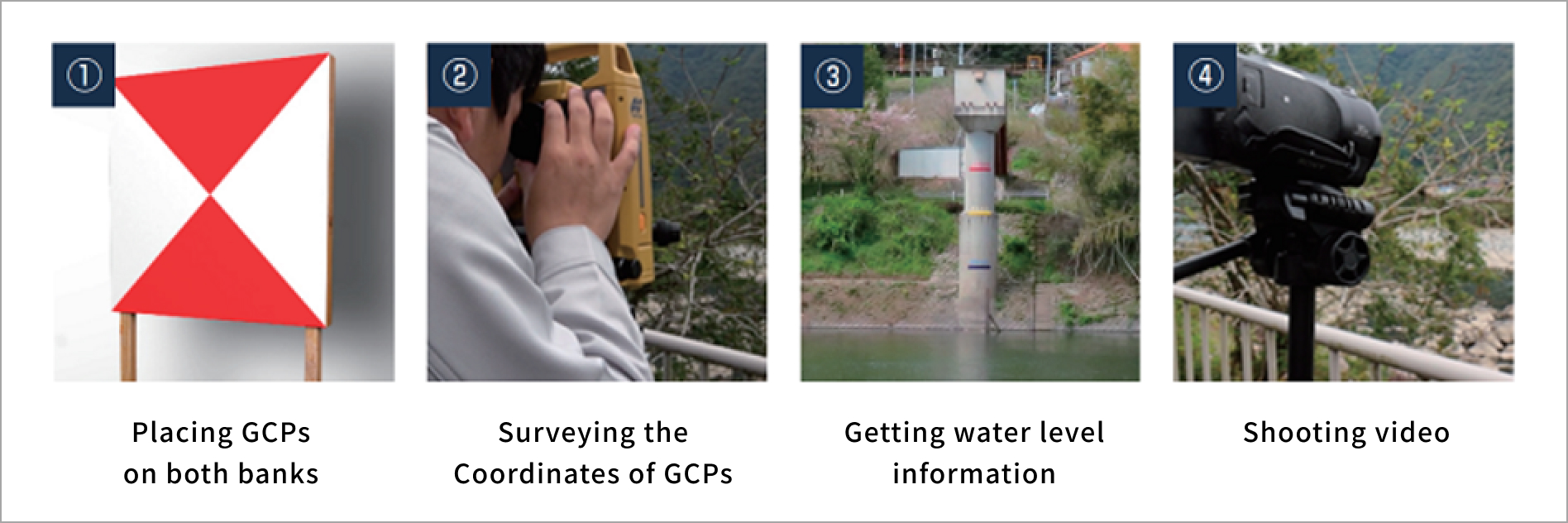

Field Survey
Example of Observation Camera Positioning

The figure shows examples of a camera positioning for observing flow velocity and discharge with Hydro-STIV.
Please place the camera with reference to the following.

Main Functions

< Measurement>

  • Flow velocity and discharge measurement by STIV
  • AI automation with high accuracy in velocity
  • Flow velocity measurement by PTV
  • Automatic water level measurement using image
  • Geometric correction of a fixed point shooting image
  • Discharge calculation by mensuration of division
  • Filtering of abnormal values in measurement
  • Wind effect correction
  • Discharge calculation by MEM

< Utility>

  • Visualizing results across river cross section
  • Consecutive measurement at same angle of view
  • Manual correction of measurement results
  • Video stabilization
  • Video editing(cut out the target time section)
  • Result summary report output
  • KMZ coordinates output (Google Earth, etc.)
  • Batch output of related files
System Requirement

< System requirement>

OS Windows 10 (64-bit), Windows 11
CPU Intel Core i5 third generation or higher
memory 4GB or more
display 1920×1080

< Video requirement>

format avi, mp4, mov, wmv, m2ts
scanning Progressive
Playback time 15~30 Seconds (Recommended)
Frame Rate 24fps or more (Recommended)
resolution 720p, 1080p or more (Recommended)
Data

Hydro-STIV
Product Brochure

Hydro-STIV
Software Licence Contract

For all inquiries regarding Hydro-STIV, please contact us using the form below.

Contact
